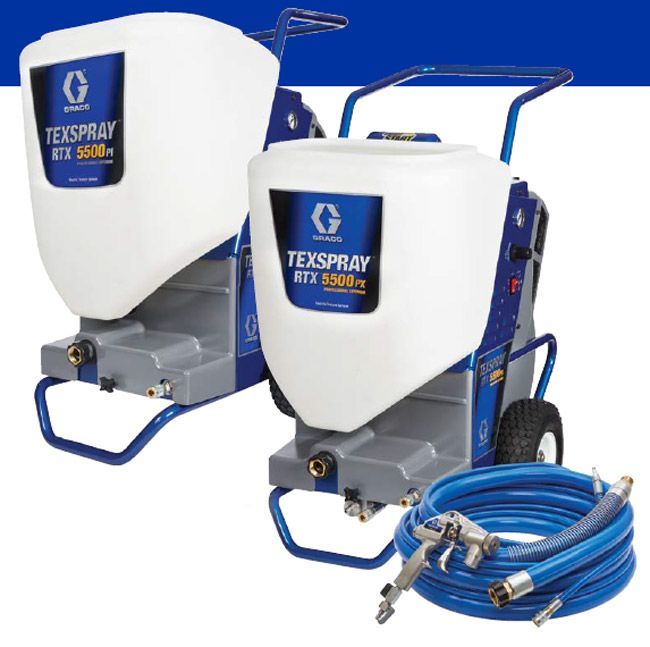

GRACO RTX 5500PX

Large areas and investments

The device works well when painting large investments - wall surfaces, ceilings, alloys.

RTX units are built around a flexible pump that provides continuous material to the gun with minimal pulsation. The result is a very even spray of the material, resulting in high-quality coatings. The compact design of the electric motor increases its resistance to the possibility of dust during operation, reduces the possibility of overvoltages and has a positive effect on reducing the size of the device. The unit is designed to spray granular finish materials or other lightweight materials that require air spray. Also suitable for pneumatic spraying of filler materials.

The offered unit in the basic version consists of the following components placed on a

two-wheel trolley:

• 1.5 kW 230V electric motor
• Roto Flex flex pump,
• integrated compressor 250 l/min
• 1”x7.5 m material supply cable to the gun,
• 3/8”x7.5 m air line
• RTX air gun
• six spray nozzles
• 57 l hopper

Parameters:

• max. material pressure 7 bar,
• max. air working pressure 3 bar,
• max. hose length 30 m
• max. capacity 21 l/min
• total weight 79 kg
• max. particle size 4.5 mm

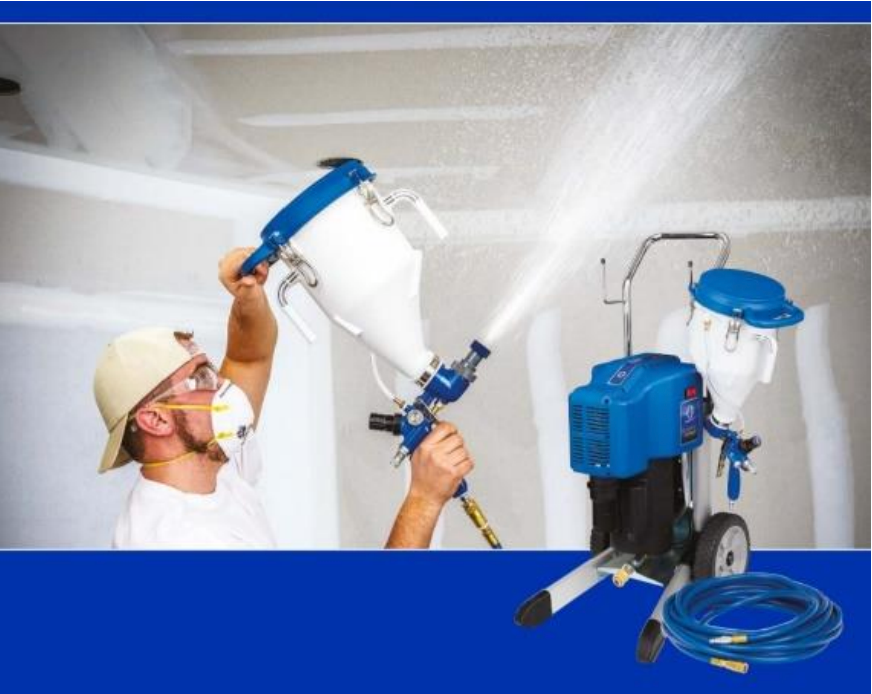

GRACO Fast Finish Pro

Details of Architecture, Piping, Machines

The gun is ideal for painting large surfaces, also at heights, as well as for painting complex architectural details.

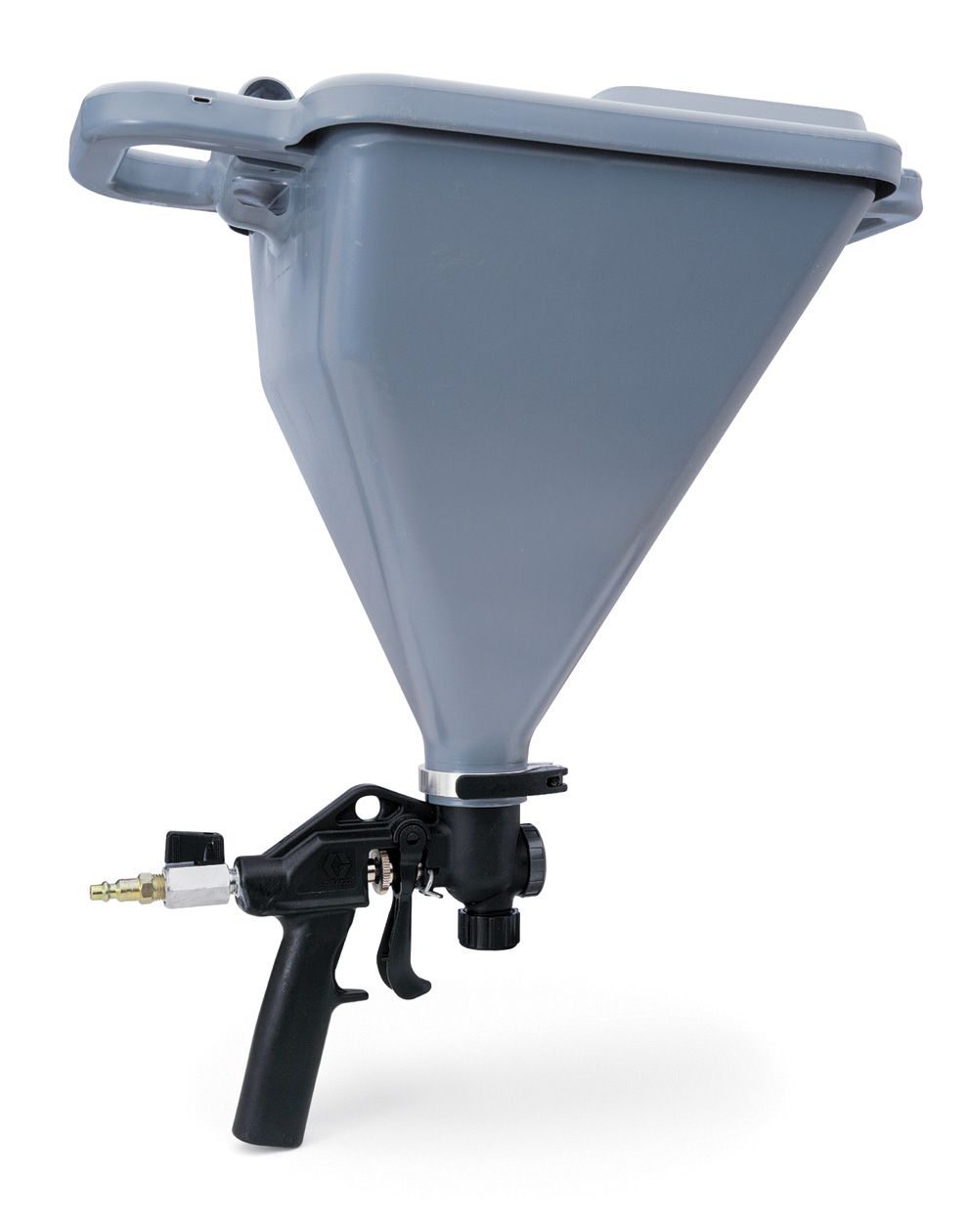

GRACO FAST FINISH PRO units are built on the basis of a continuous flow compressor and a hermetic FASTFINISH HOPER GUN gun, which feeds the material in a way supported by an air cushion with a pressure of up to 1 bar.

The result is a very even spray of the material, resulting in high-quality coatings. The unit is designed to spray granular finishes or other materials that require air spray.

The simplicity of the design makes it easy to use in everyday use.

   The unit consists of:

• cup gun with assisted power supply
• three sets of nozzles for structures
• 230V compressor with continuous operation
• compressed air hose 3/8 x 15m

New ParagraTechnical parameters:

• compressor capacity 255 l/mmin
• tank capacity 5.7 l
• weight 35.8 kgph

   Its major advantages are:

• the presence of adjustable support in the material hopper, allowing work with very light coating materials
• the possibility of spraying with pre-atomization, allowing to achieve a flat spray stream and smooth coating
• simplicity of construction and low electricity demand

Personal Protection/ Health & Safety

During application, it is recommended to use a protective mask, protective gloves (prevention of e.g. an allergic reaction), protective glasses (in particular when applying with a pressure gun), painting suit to avoid stains on shoes and clothes, hearing protection, headphones when using a compressor during spray painting.

Precautions

Observe the recommendations given in the safety data sheet. This data sheet does not contain information on the safety of the product. Before using the product, read the safety data sheet and the labels on the packaging in order to obtain information about the safe use and health and physical hazards. Dispose of in accordance with applicable legislation. Keep out of the reach of children. Notes for the client: The above information is accurate and to the best of our knowledge, based on reliable research and practical experience. The specified properties are provided for guidance only and do not constitute guaranteed product properties. The customer should test the product for specific applications to be sure that it has the expected properties and provides the required operational performance.
